SpanflexTM FR -V0

SpanflexTM FR -V0

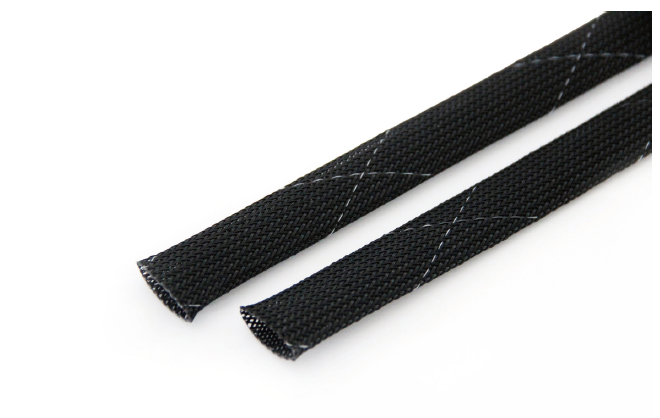

SpanflexTM FR -V0 is a protective sleeve made of halogen free and flame retardant polyethylene terephthalate (PET) monofilament which can be expanded to a maximum usable diameter at least 50% higher than its nominal size.

It is specifically designed for high-tech applications where flame retardant and durability are the main selection criteria. Protection for wire bundling and harnessing, pneumatic hoses, hydraulic lines are typical examples of recommend-ed applications.

SpanflexTM FR -V0 is a frame proof product. This means it won’t ignite even exposed on a burning source. It fulfils the most strict testing standards defined by UL 1441.




















Technical Overview

MaxWorkingTemperature

Size Range

Industries

Colors

-70°c, +125°c

3mm-70mm

Aerospase and defence

Black (BK Standard)



Automotive

Other colors available



Sensor assemblies

Upon request



Industrial




Marine




Rail




Material:

Applications:
FR Polyethylene Terephthalate (FR PET)Rubber hoses
Construction:

Plastic pipes
Braided

Wire harnesses


Dimensions

Size

ID Nominal

Max ID

SP-PET022 3

3mm

7mm

SP-PET022 6

6mm

10mm

SP-PET022 10

10mm

16mm

SP-PET022 15

15mm

20mm

SP-PET022 20

20mm

32mm

SP-PET022 25

25mm

40mm

SP-PET022 30

30mm

45mm
