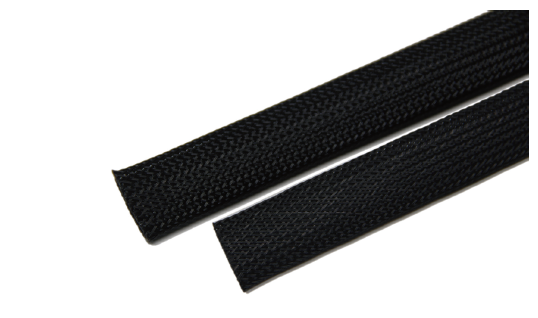

Spanflex® PET022
Spanflex® PET022 is a protective sleeve made of polyethylene terephthalate (PET) monofilament with a diameter of 0.22mm. It can be expanded to a maximum usable diameter at least 50% higher than its nominal size. Therefore, each size can fit to different applications.
It is a lightweight construction specifically designed for the protection of pipes and wire harnesses against unexpected mechanical damages. The sleeve has further-more an open weave structure which permits drainage and prevents condensa-tion.
Technical Overview | |||
MaxWorkingTemperature | Size Range | Applications | Colors |
-70°c, +150°c | 3mm-50mm | Wire harnesses | Black (BK Standard) |
Pipe and hoses | Other colors available | ||
Sensor assemblies | Upon request |
Material: | Applications: | ||
Polyethylene Terephthalate (PET) | Rubber hoses | ||
Construction: | Plastic pipes | ||
Braided | Wire harnesses |
Dimensions | ||
Size | ID Nominal | Max ID |
SP-PET022 3 | 3mm | 8mm |
SP-PET022 6 | 6mm | 14mm |
SP-PET022 10 | 10mm | 16mm |
SP-PET022 15 | 15mm | 25mm |
SP-PET022 20 | 20mm | 31mm |
SP-PET022 25 | 25mm | 38mm |
SP-PET022 30 | 30mm | 45mm |
