Spanflex® xPA/PET-DP

Spanflex® xPA/PET-DP

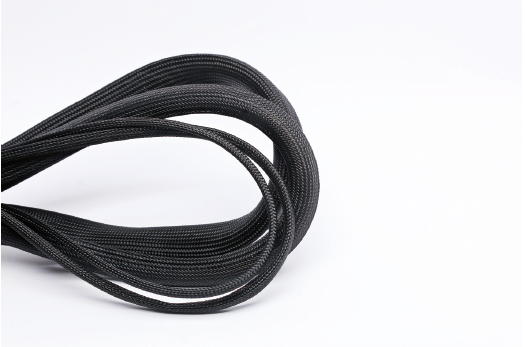

Spanflex® xPA/PET-DP is a protective sleeve made with a combination of polyamide 6.6 (PA66) monofilaments with a diameter of 0.38mm and polyethylene terephtha-late (PET) monofilaments of 0.25mm.

The polyamide yarn being higher in size provides the abrasion resistance needed to the reach the protection grade, while the polyethylene filaments grant the supporting structure to the sleeve.

Spanflex® xPA/PET-D combines the high abrasion resistance offered by the polyam-ide monofilaments, while maintaining at the same time high flexibility. It offers a superior abrasion protection with an outstanding resistance against oils, liquids, fuel, and various chemical agents.


Spanflex® xPA/PET-DP.png

Technical Overview

MaxWorkingTemperature

Size Range

Applications

Colors

70°c, +150°c

3mm-50mm

Wire harnesses

Black (BK Standard)



Pipe and hoses

Other colors available



Sensor assemblies

Upon request



Material:

Applications:
Polyamide 6.6 (PA66) 0.38mm & Rubber hoses
Polyethylene Terephthalate (PET) 0.25mmPlastic pipes
Construction:

Wire harnesses
Braided



Dimensions

Size

ID Nominal

Max ID

SP-PET022 3

3mm

8mm

SP-PET022 5

5mm

13mm

SP-PET022 10

10mm

17mm

SP-PET022 15

15mm

25mm

SP-PET022 20

20mm

33mm

SP-PET022 25

25mm

40mm

SP-PET022 30

30mm

48mm
