BASFLEX

BASFLEX

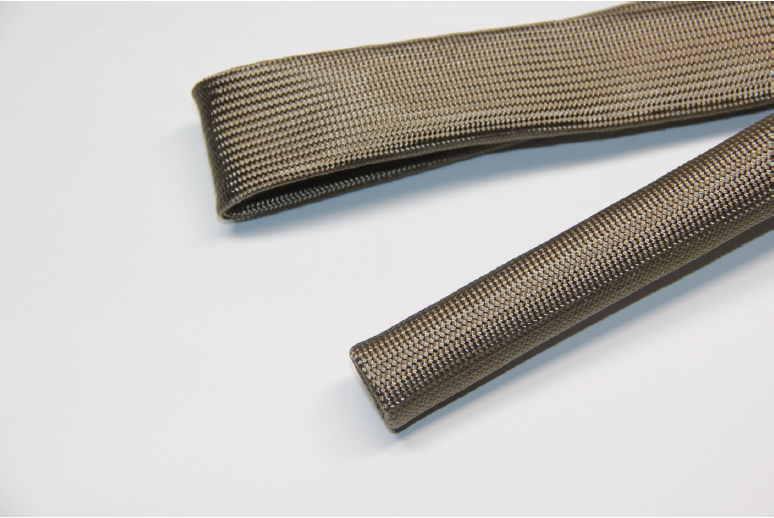

BASFLEX is a product formed by intertwining multiple fibers made of basalt filaments. The yarns are drawn from the melt of basalt stones and possesses high elastic modulus, outstanding chemicals and thermal/heat resistance. Additionally, the basalt fibers have very low humidity absorption compared to glass fibers.

The Basflex braid has excellent heat and flame resistance. It is non flammable, have no dripping behavior, and have no or very low smoke development. Compared to braids made of fiberglass, the Basflex have higher tensile modulus and higher impact resistance. When immersed in alkaline medium, the basalt fibers have 10-fold better weight loss performances compared with fiberglass.




Technical Overview

MaxWorkingTemperature

Sizing:

Applications


-55°C , +450°C

Textile sizing

Thermal insulation




Mechanical reinforcement




Chemical resistance







Material:

Applications:
Basalt fibersChemical protection sleeve
Construction:

Mechanical protection sleeve
Braided


Dimensions

Size

ID/ Nom. D

Max ID

BSF- 6

6mm

10mm

BSF- 8

8mm

12mm

BSF- 10

10mm

15mm

BSF- 12

12mm

18mm

BSF- 14

14mm

20mm

BSF- 18

18mm

25mm

BSF- 20

20mm

30mm
