Spanflex® HA

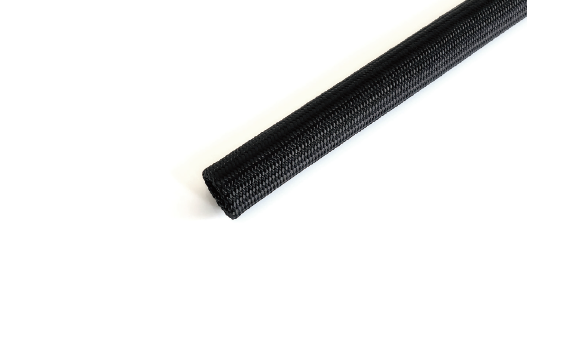

Spanflex® HA is a protective sleeve made of polyethylene terephthalate (PET) multifilament braided in a tight construction.
It is extemely tough and resistant to abrasion and cut, thus extenting considerably the life time of the protected tube or pipe.
Spanflex® HAT offers even more protection versus the standard Spanflex® HA. The braiding construction and material used in this case offers a superior abrasion grade which offers, in some critical parts, the highest possible protection.
The sleeve is manufactured in a way that through the hot cut no issues are risen for the installation.
Technical Overview | |||
MaxWorkingTemperature | Size Range | Applications | Colors |
-70°c, +150°c | 3mm-50mm | Wire harnesses | Black (BK Standard) |
Pipe and hoses | Other colors available | ||
Sensor assemblies | Upon request | ||
| Material: | Applications: | ||
| Polyethylene terephthalate (PET) | Rubber hoses | ||
| Construction: | Plastic pipes | ||
| Braided | Wire harnesses | ||
Dimensions | ||
Size | ID Nominal | Max ID |
SP-PET022 3 | 3mm | 5mm |
SP-PET022 5 | 5mm | 8mm |
SP-PET022 10 | 10mm | 14mm |
SP-PET022 15 | 15mm | 20mm |
SP-PET022 20 | 20mm | 25mm |
SP-PET022 25 | 25mm | 30mm |
SP-PET022 30 | 30mm | 35mm |
