Spanflex® SC

Spanflex® SC

Spanflex® SC is a self closing protective sleeve made with a combination of polyeth-ylene terephthalate (PET) monofilaments and multifilaments. The self-closing concept allows the sleeve to be installed easily onto pre-terminated wires or tubes, thus allowing installation at the end of the whole assembly process. The sleeve offers also very easy maintenance or inspection by just opening the wraparound.


Spanflex® SC is a tough sleeve resistant to cut, designed to protect wire bundles and harnesses, hoses, tubing, and cable assemblies from mechanical damage and enviromental hazards. It slips quickly and self-fits on irregular shapes and coun-tours.

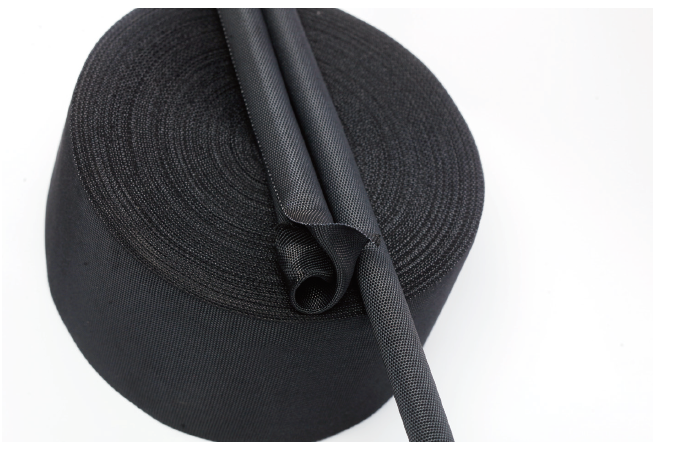

 Spanflex® SC.png























Technical Overview

MaxWorkingTemperature

Size Range

Applications

Colors

-70oC, +150oC

6mm-50mm

Wire harnesses

Black (BK Standard)

125 °C(3000 hours)


Pipe and hoses

Orange (OR Standard)



Sensor assemblies

Other colors available



Industrial

Upon request



Marine




Rail




Material:

Applications:
PET (Polyester)/PolyolefinRubber hoses
Construction:

Plastic pipes
Woven

Wire harnesses


Dimensions

Size

ID Nominal

Max ID

SP-SC 6

6mm

8mm

SP-SC 8

8mm

10mm

SP-SC 10

10mm

12mm

SP-SC 12

12mm

14mm

SP-SC 15

15mm

18mm

SP-SC 20

20mm

24mm

SP-SC 30

30mm

35mm
