Spanflex® SC-H

Spanflex® SC-H

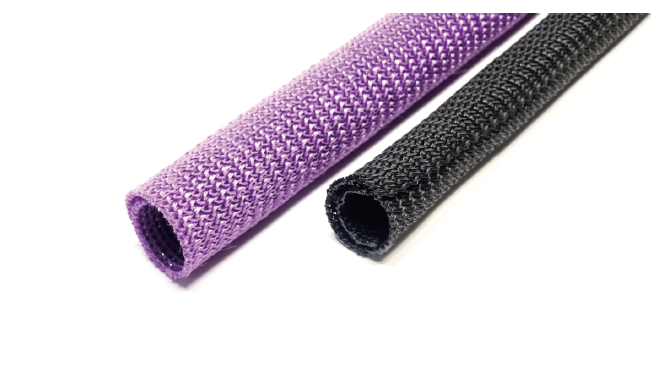

Spanflex® SC-H is a self-closing protective sleeve made with a combination of polyethylene terephthalate (PET) monofilaments and multifilaments. The self-clos-ing concept allows the sleeve to be installed easily onto pre-terminated wires or tubes, thus allowing installation at the end of the whole assembly process. The sleeve offers also very easy maintenance or inspection by just opening the wrapa-round.

Spanflex® SC-H is a tough sleeve with higher grade of resistance against cut, designed to protect wire bundles and harnesses, hoses, tubing, and cable assem-blies from mechanical damage and enviromental hazards. It slips quickly and self-fits on irregular shapes and countours.


Spanflex® PET022.png

Technical Overview

MaxWorkingTemperature

Size Range

Applications

Colors

-70°C , +150°C

6mm-50mm

Wire harnesses

Black (BK Standard)

125°C(3000 hours)


Pipe and hoses

Orange (OR Standard)



Sensor assemblies

Other colors available




Upon request





Material:

Applications:
PET (Polyester)/PolyolefinRubber hoses
Construction:

Plastic pipes
Knitted

Wire harnesses



Dimensions

Size

ID Nominal

Max ID

SP-SC-H 6

6mm

8mm

SP-SC-H 8

8mm

10mm

SP-SC-H 10

10mm

12mm

SP-SC-H 12

12mm

14mm

SP-SC-H 15

15mm

18mm

SP-SC-H 20

20mm

24mm

SP-SC-H 30

30mm

35mm
