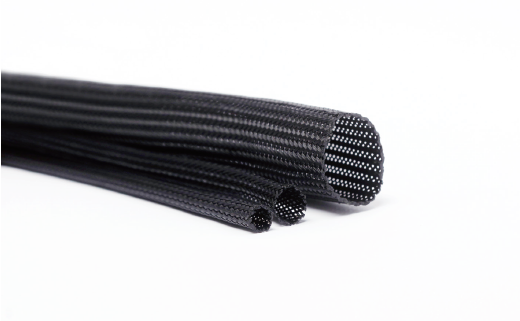

Spanflex® xPA/PET
Spanflex® xPA/PET is a protective sleeve made with a combination of polyamide 6.6 (PA66) and polyethylene terephthalate (PET) monofilaments with a diameter size of 0.25mm.
It is an expandable and flexible sleeve specifically designed for the protection of pipes and wire harnesses against unexpected mechanical damages. The sleeve has an open weave structure which permits drainage and prevents condensation.
Spanflex® xPA/PET combines the high abrasion resistance grade offered by the polyamide monofilaments, while maintaining at the same time high flexibility. It offers a superior abrasion protection with an outstanding resistance against oils, liquids, fuel, and various chemical agents.
Technical Overview | |||
MaxWorkingTemperature | Size Range | Applications | Colors |
-40°c, +125°c | 3mm-60mm | Wire harnesses | Black (BK Standard) |
Pipe and hoses | Other colors available | ||
Sensor assemblies | Upon request |
Material: | Applications: | ||
Polyamide 6.6 (PA66) 0.25mm & | Rubber hoses | ||
Polyethylene Terephthalate (PET) 0.25mm | Plastic pipes | ||
Construction: | Wire harnesses | ||
Braided |
Dimensions | ||
Size | ID Nominal | Max ID |
SP-PET022 3 | 3mm | 8mm |
SP-PET022 5 | 5mm | 13mm |
SP-PET022 10 | 10mm | 17mm |
SP-PET022 15 | 15mm | 25mm |
SP-PET022 20 | 20mm | 33mm |
SP-PET022 25 | 25mm | 40mm |
SP-PET022 30 | 30mm | 48mm |
