ARAMAX

ARAMAX

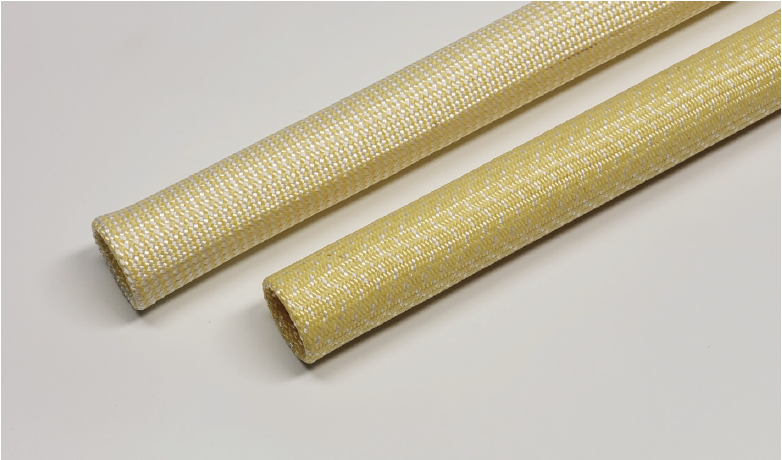

ARAMAX is a product formed by intertwining multiple glass fiber yarns with para-aramidfilaments under specific braiding angle through circular braiders. Such formed seamless textile tube, is flexible and can be expanded to fit on a wide range of hoses. Depending on the braiding angle (generally between 30º and 60º, the material density and the numbers of yarns, different constructions can be obtained.

ARAMAX is produced with textile sizing which is compatible to most of the coating material such as, but not limited to, silicone varnishes, polyurethane, acrylic and epoxy resins, PVC based formulations and many more⋯

Para-Aramid fibers are one the synthetic fibers known for their ability to behave elastically under tension. Indeed, aramid fibers have high tenacity and high reisstance to strech. Additionally they are resistant to most chemicals and to high temperature.




Technical Overview

MaxWorkingTemperature

Sizing:

Applications


-55°C , +200°C

Textile sizing

Thermal insulation




Mechanical reinforcement




Electrical insulation







Material:

Applications:
E-Glass & Para-AramidChemical protection sleeve
Construction:

Mechanical protection sleeve
Braided







Dimensions

Size

ID/ Nom. D

Max ID

AR- 6

6mm

10mm

AR- 8

8mm

12mm

AR- 10

10mm

15mm

AR- 12

12mm

18mm

AR- 14

14mm

20mm

AR- 18

18mm

25mm

AR- 20

20mm

30mm
