Spanflex® NTT

Spanflex® NTT

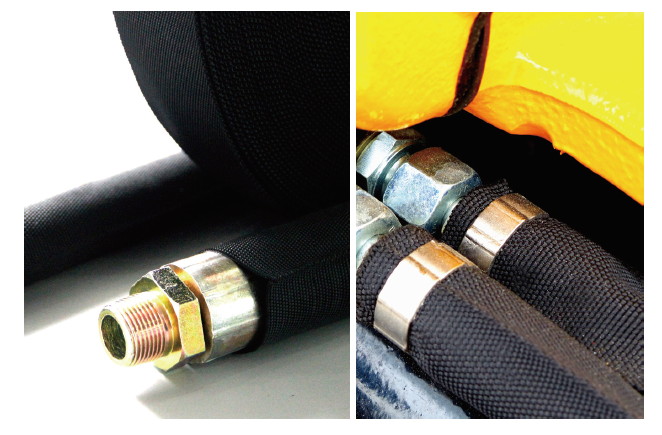

Spanflex® NTT is constructed of tightly woven nylon filament and is resistant to abrasion, cuts, heat and UV/Ozone deterioration. Rated to ISO6945 abrasion stand-ard, this nylon sleeve is your first line of defense against wear and tear. It is composed of extremely flexible and durable nylon, so it extends the life of your hose and ensures that you have equipment you can rely on every day. It safely deflects high pressure oil spray in the event of a hose leak.

Spanflex NTT is also commonly used to protect wiring, cables and chain from exter-nal damage. Easy to install and can be held in place with nylon cable ties or band-ing.


Spanflex® NTT.png













Technical Overview

MaxWorkingTemperature

Size Range

Applications

Colors

-70°C , +125°C

6mm-50mm

Pipes

Black (BK Standard)



Rubber hoses

Other colors available



Cable bundles

Upon request







Material:

Applications:
PET (Polyester)/PolyolefinRubber hoses
Construction:

Plastic pipes
Knitted

Cable bundles



Dimensions

Size

ID Nominal

Max ID

SP-SC-H 6

6mm

8mm

SP-SC-H 8

8mm

10mm

SP-SC-H 10

10mm

12mm

SP-SC-H 12

12mm

14mm

SP-SC-H 15

15mm

18mm

SP-SC-H 20

20mm

24mm

SP-SC-H 30

30mm

35mm
