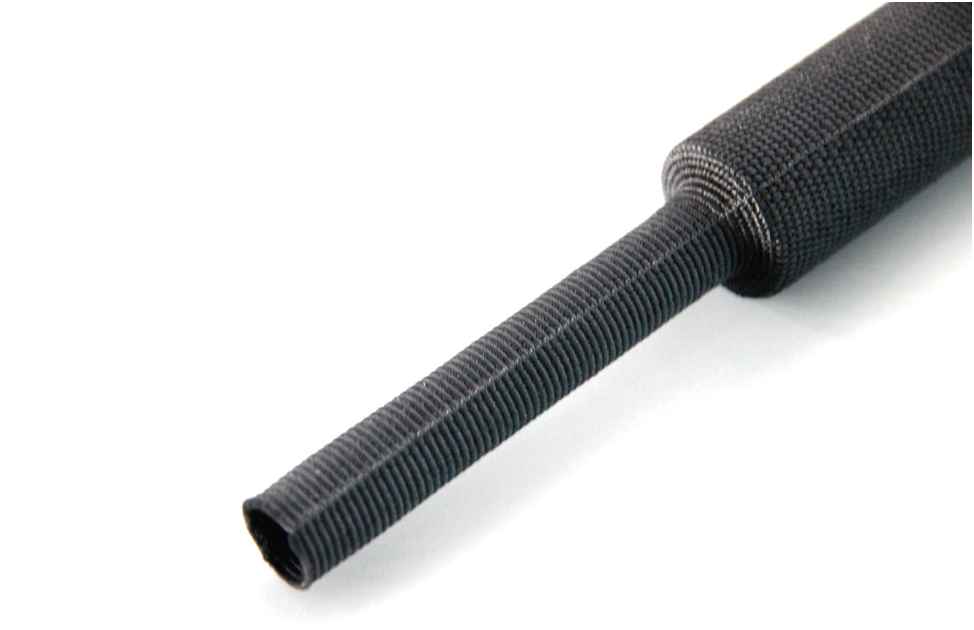

SpanflexTM-shrink
SpanflexTM-shrink is a shrinkable woven textile made of a combination of PET (Polyethylene Terephtalate) and polyolefin yarns. With a 2:1 shrink ration it provides a snug fit around the underlying substrate, thus protecting components such as rubber hoses, pipes, and wire harness from mechanical abrasion.
The tighly woven construction makes it extremely flexible and resistant to trapping water, heat, and humidity. It can be easily installed without need of hot knife or other cutting equipments.
SpanflexTM-shrink is a ROHS and REACH approved product and resists to harsh environments such as engine compartments.
Technical Overview | |||
MaxWorkingTemperature | Size Range | Industries | Colors |
150 °C(1000 hours) | 12mm-70mm | Aerospase and defence | Black (BK Standard) |
125 °C(3000 hours) | Automotive | ||
Commercial | |||
Industrial | |||
Marine | |||
Rail | |||
| Material: | Applications: | ||
| PET (Polyester)/Polyolefin | Rubber hoses | ||
| Construction: | Plastic pipes | ||
| Woven | Wire harnesses | ||
Dimensions | ||
Size | ID Nominal before shrinkange | Max ID after shrinkange |
SP-SRK 12/6 | 12[0.47] | 6[0.24] |
SP-SRK 20/10 | 20[0.79] | 10[0.39] |
SP-SRK 30/15 | 30[1.18] | 15[0.59] |
SP-SRK 40/20 | 40[1.57] | 20[0.79] |
SP-SRK 50/25 | 50[1.97] | 25[0.98] |
SP-SRK 60/30 | 60[2.36] | 30[1.18] |
SP-SRK 70/35 | 40[2.76] | 35[1.38] |
